1.Product introduction
Manufacturer of a wide range of products which include right angle pattern flanged valves.

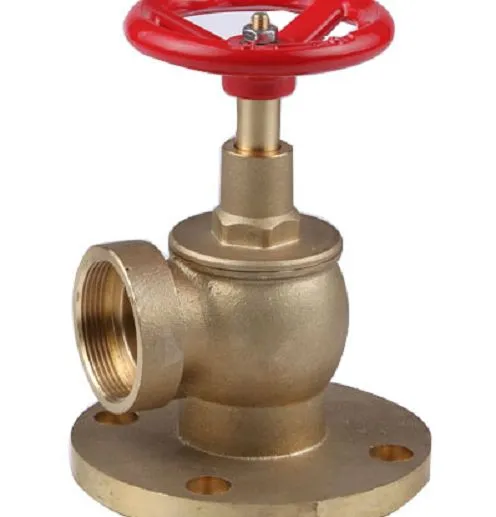

PN16 rated angled pattern fire hydrant valve with bronze body, suitable for both offshore and onshore applications.
2.Product Parameter
Code No. | Inlet | Outlet |
HY001-009B2-00 | 2”ANSI | 2”BSP |
HY001-009B3-00 | 2”ANSI | F2”BSP |
HY001-009B6-00 | 2”JIS10K | F2”BSP |
HY001-009B8-00 | 2”BS4504 | 2”BSP |
HY001-048-00 | 1.5”BS4504 | F1.5”BSP |
3.Products Features
Body: copper alloy to BS 1400
Hand wheel: aluminum
Inlet: Flange BS4504, ANSI or JIS10K
Outlet:Male/ female BSP thread
Pressure test: 22. bar
Normal sizes: 1.5, 2 and 2.5-inch
4. Product details--see attached
5.Product qualification of Oblique Landing Valves
6.Delivery,shipping,serving of....
7.FQA
Q: How about your packing?
A:Polybag one product into stronger paper carton,finally packing the goods with the pallet
Q: What is your terms of payment?
A: In normal condition, 30% T/T in advance, balance before shipment. But other methods are discussable.
Q: Are you trading company or manufacturer ?
A: We are factory,so we can supply the most favourable price.
8.Latest news
